Settings

Accessible via the Settings button in the StatusBar (data-testid="settings-trigger"). The Settings-dialog values are per-user, cross-file — they are written to figma.clientStorage["systema_user_settings"] so they follow the user across every Figma file (desktop or web Figma). File-level layout state (zoom, split percent, scroll positions, sectionStates, selected theme, …) stays in the file's pluginData, and API keys also live in figma.clientStorage (per-user, never shared with collaborators).

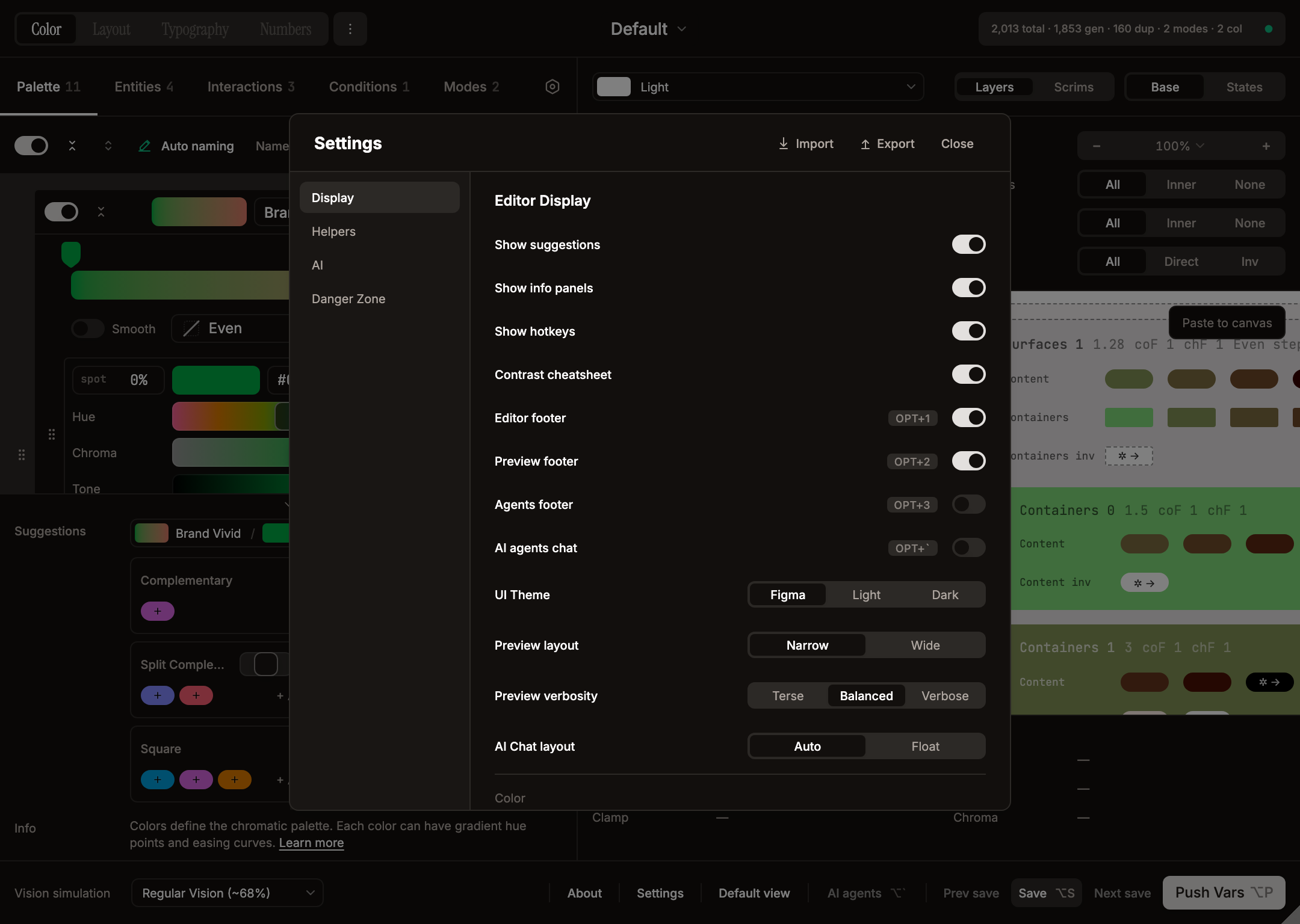

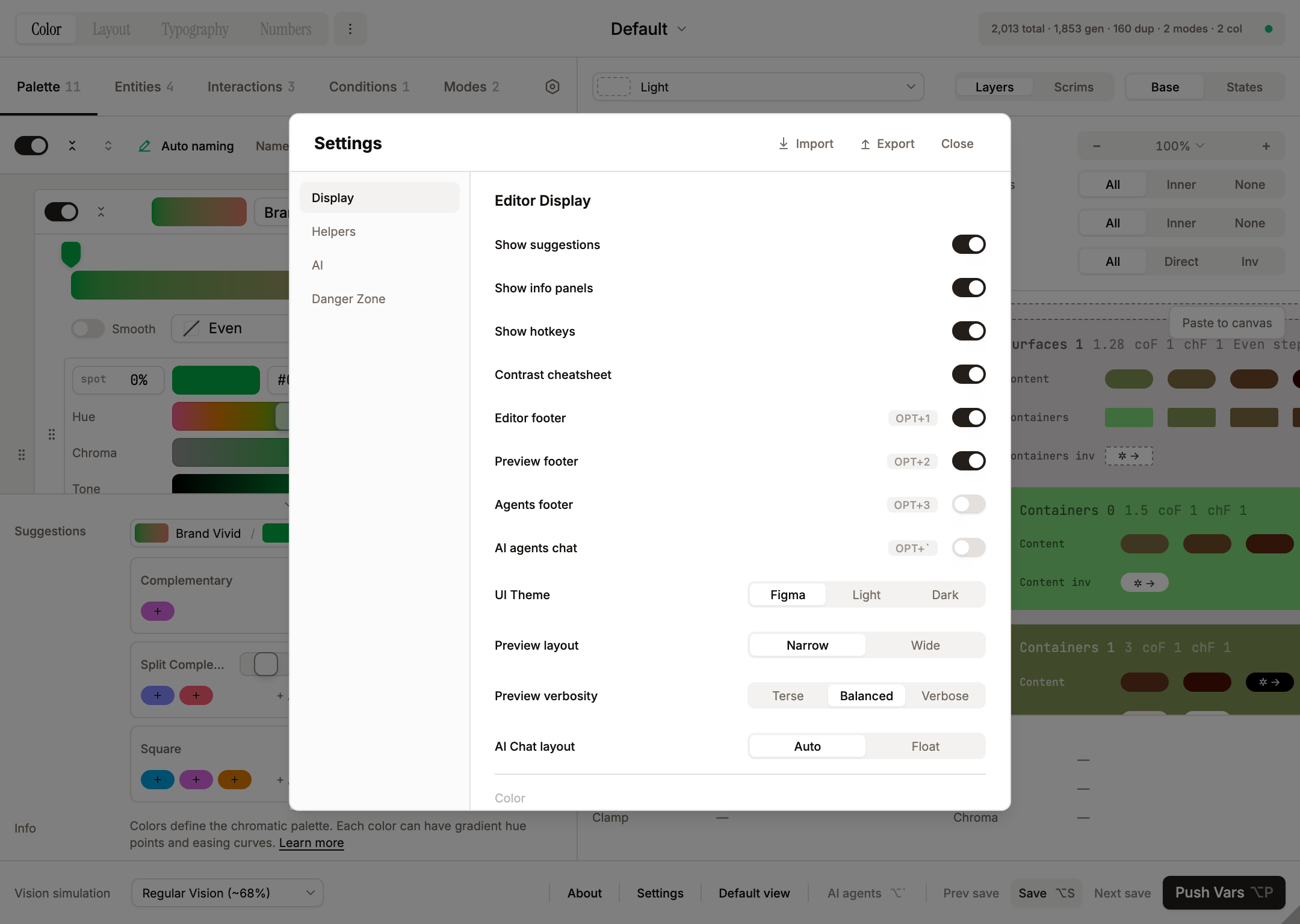

The dialog has a left sidebar with four sections — Display, Helpers, AI, Danger Zone — and a header with Import / Export and Close buttons. A Reset all button sits at the bottom of the sidebar and only appears once a setting differs from its default. Below the Danger Zone nav, a small Made by Jamil Lazarev link (→ jamillazarev.com) credits the author.

Display

The Display section opens with an "Editor Display" group, then a "Color" subhead.

• Show suggestions — toggle the suggestion footer panel. Drives both the Color Suggestions block (Palette tab — harmony chips: Complementary / Analogous / Triadic / Square / Tetradic / Split) and the Entity Suggestions block (Entities tab — per-pattern contrast / level / step pill rows)
• Show info panels — toggle the descriptive info blocks inside editor sections
• Show hotkeys — toggle the keyboard shortcut hints in the editor
• Contrast cheatsheet — toggle the WCAG/APCA cheatsheet below the Contrasts field in entity editors
• Editor footer — toggle the editor's bottom info panel (combines color suggestions, info text, hotkeys). Hotkey: Opt+1
• Preview footer — toggle the preview's bottom info panel (hovered swatch / surface / container readout with clamp + chroma diagnostics). Inverse rows append an inv token to the entity name (Containers inv 0, Content inv 2) so direct vs inverse stays unambiguous; the suffix is added at render time and survives interactive composite cells where the displayed colour updates live with hover/press/drag events. Hotkey: Opt+2
• Agents footer — toggle the agents footer panel under the chat. Hotkey: Opt+3
• AI agents chat — toggle the chat panel itself. Hotkey: Opt+`
• UI Theme (Figma / Light / Dark) — Figma follows the host theme; Light / Dark pin the plugin UI explicitly. Swatch outlines adapt automatically
• Preview layout (Narrow / Wide) — Narrow: surfaces side-by-side, content stacked inside. Wide: surfaces stacked, content/containers laid out horizontally. Wide also flows per-condition groups (Enabled | Selected | Disabled) horizontally inside EntityRowView so they read at a glance instead of stacking vertically
• Preview verbosity (Terse / Balanced / Verbose) — controls how much textual scaffolding the preview shows. Verbose = c-N N.NN + coF/chF labels around each swatch + 96-px wide swatch pills. Balanced (default) = labels dropped, swatches collapse to 40 × 16. Terse = every label hidden (section / row / condition headers + per-swatch labels). Paste-to-canvas walks the live DOM, so what isn't rendered isn't exported
• AI Chat layout (Auto / Float) — Auto docks the chat as a third panel when the window is wide enough (≥1440px — EDITOR_PANEL_WIDTH + MIN_PREVIEW_WIDTH + CHAT_PANEL_WIDTH = 480 × 3) and floats it otherwise; Float forces the floating overlay regardless of width

Color (Display)

Under a "Color" subhead at the bottom of the Display section:

• Preview filters — show/hide the entire preview filter block (entity color overrides, display filters)
• Vision simulation (Preview / Editor / All) — controls whether the active CVD filter applies just to preview swatches, the editor only, or every pixel in the plugin UI

Helpers

• Autosave — toggle plus a numeric input (10–600 seconds, default 60). Arrow keys step by 10s, Shift+arrow by 60s. When autosave fires, the Save button shows the same wave animation as a manual save
• Preview transitions — toggle plus a numeric input (50–500 ms, default 150). Drives the global --systema-transition-duration CSS variable; flipping the switch off collapses every transition in the UI to 0 ms (state changes apply instantly). The override is scoped to elements that already declared transition-* (utility classes or inline styles), so popovers/tooltips that rely on Radix's inline top/left/transform aren't accidentally interpolated and snap into place as before

Color (Helpers)

Under a "Color" subhead at the bottom of the Helpers section:

• Swatch borders (Auto / Always / Hidden) — adds dashed borders when the contrast between a swatch and its background is too low to distinguish edges. Auto = only when needed

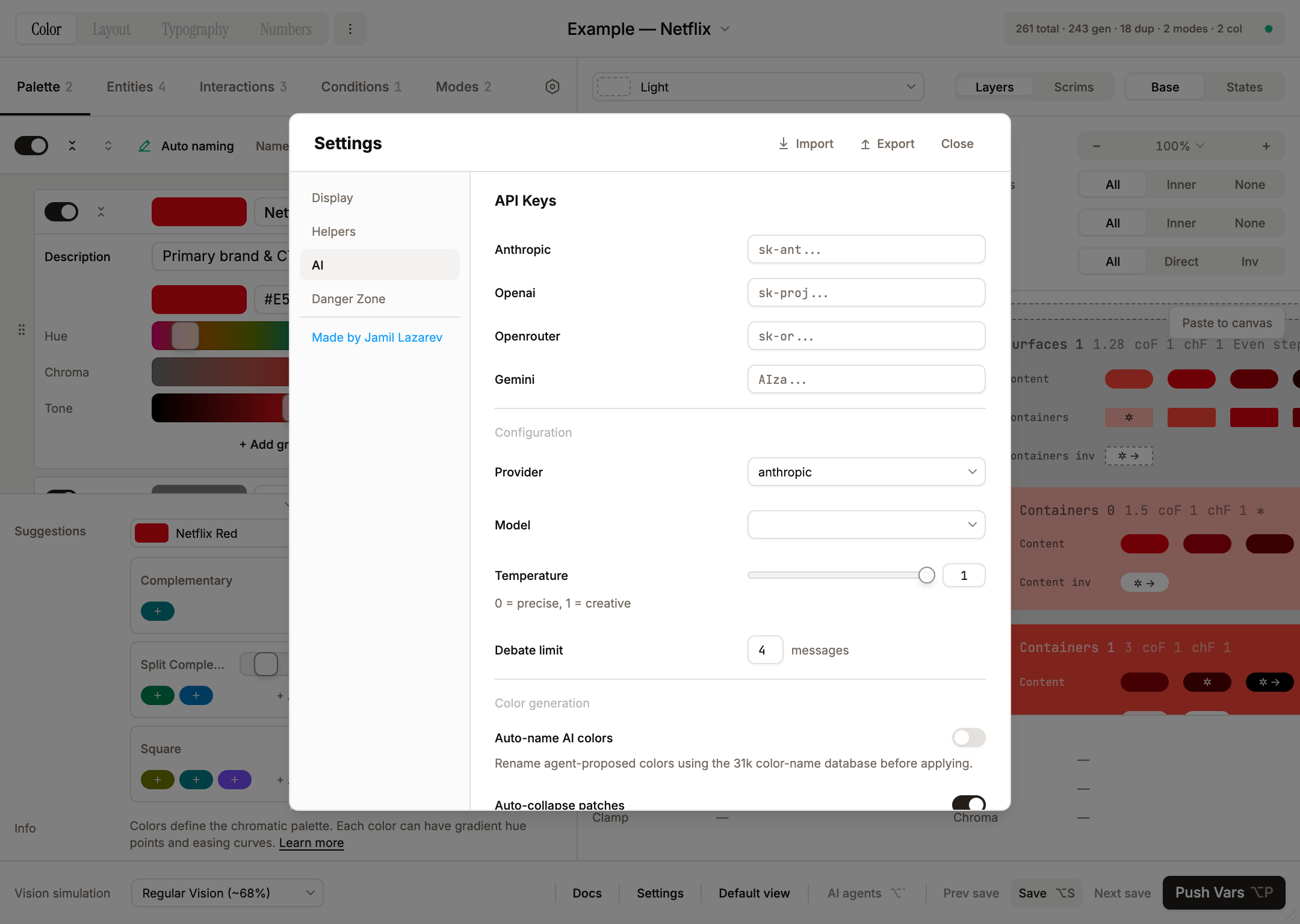

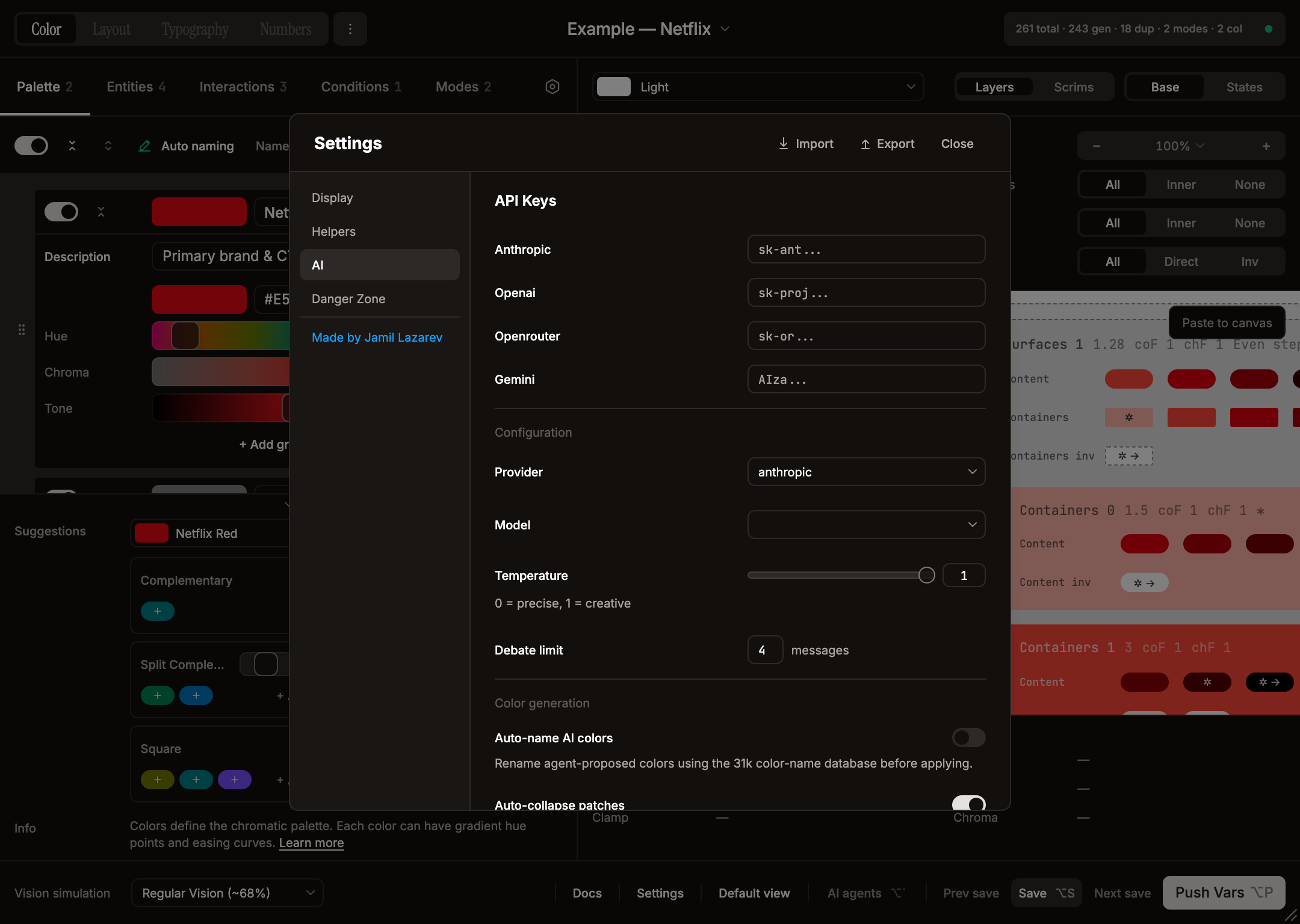

AI

The AI section is split into three subheads: API Keys, Configuration, and Color generation.

API Keys

• Anthropic / OpenAI / OpenRouter / Gemini — one password field each, with an inline status indicator (spinner → green check / "Invalid"). Keys are stored per-user in figma.clientStorage (private, not shared with collaborators) and validated live on an 800 ms debounce — OpenRouter is validated against its auth-key endpoint (https://openrouter.ai/api/v1/auth/key), while Anthropic / OpenAI / Gemini hit their models endpoints. Image/screenshot attachments in chat currently require the Anthropic provider (other providers receive a text placeholder in place of the image); image analysis uses the model selected in Settings, not a fixed model. Text chat works on all four providers

Configuration

• Provider (dropdown) — pick which provider drives the chat. The dropdown is filtered to providers whose key has validated; when exactly one key is valid the provider is auto-selected and the dropdown is disabled; with zero valid keys the full four-provider list is shown so you can switch and then add the key
• Model — for OpenRouter, a free-text field (e.g. openai/gpt-4o); for every other provider, a dropdown populated dynamically from that provider's /v1/models endpoint after its key validates (Anthropic returns the live Claude lineup, OpenAI is filtered to GPT-4 / GPT-3.5 / o1–o4, Gemini pulls models with generateContent support). No model is hardcoded in the UI
• Temperature — slider + numeric input (0 to 1 for Anthropic, 0 to 2 for the others; the helper text reads "0 = precise, {max} = creative"). Shift snaps to 0.5 steps, Alt to 0.01; double-click resets to 1
• Debate limit — max sequential responses (2–20, default 4) when you @all or start a multi-agent debate. Arrow keys step by 1

Color generation

• Auto-name AI colors (default off) — rename agent-proposed colors using the 31k color-name database before applying
• Auto-collapse patches (default on) — AI patch confirmation cards open collapsed by default in the chat (helps once the chat fills with multi-step plans)

Per-agent personality knobs (model, temperature, verbosity, skepticism, management, playfulness) live on the Agent Dialog (the gear / info buttons on each agent card in the chat's Agents tab), not in this Settings dialog — see AI Features → Per-agent settings. The Settings header has Import / Export buttons that round-trip the entire dialog (Display + Helpers + AI, including API keys and per-agent overrides) as a systema-settings.json file.

Reset all

The Reset all button at the bottom of the sidebar restores most Display / Helpers / AI options to their defaults in one shot (it does not currently reset the contrast cheatsheet toggle, preview filters, AI temperature/model/provider, or the colour-generation toggles); a confirmation dialog offers an optional "Also clear API keys" checkbox. The button is hidden when nothing has been changed. Themes and chat history are not affected.

Danger Zone

Action	What it does
Agent edit permissions (toggle)	managed-only (default): agents only see and modify variable collections that Systema itself created. all: agents can also read and modify foreign variable collections (other plugins, libraries, hand-made). They still cannot draw on the canvas. Implemented in src/plugin/code.ts figma-context-query / figma-rename-collection handlers, gated by the systema_managed plugin-data tag
Delete plugin data	Wipes all themes, layout, settings, chat history, and Systema's collection tags. Existing variables stay in Figma but become unmanaged; returns the plugin to the welcome screen. Optional checkboxes: "Keep agent settings" (default on) and "Keep API keys" (default on, shown only when a key is set)
Delete Systema variables	Removes every Systema-created variable collection. Config is preserved — Push Vars rebuilds the set. The confirm dialog runs a live usage scan and shows the variable count
Delete other variables	Removes every non-Systema variable collection; Systema's own collections are untouched. Useful for cleaning up legacy variables
Unbind variables from nodes	Detaches every node binding to Systema variables without deleting the variables. Nodes keep their current colors; the variables stay in the file

---
